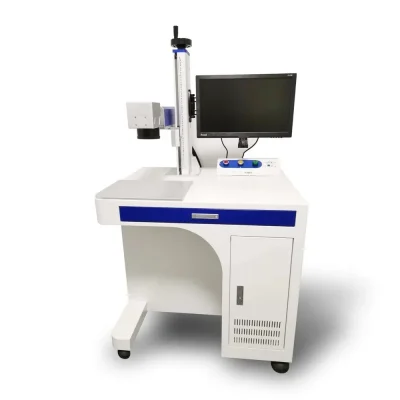

FIBER LASER MARKING MACHINE
Arrow Fiber laser marking machines are high-precision marking systems that use fiber laser technology to engrave, etch, or mark various materials. They are widely used in industries such as Metals, automotive, electronics, jewelry, medical devices, and packaging due to their speed, accuracy, and durability.
KEY FEATURES
Ultra-fine engraving – logos, patterns, text, serial numbers, photos
Precision cutting – lightweight charms, pendants, bangles, and filigree designs
Works on gold, silver, copper, platinum, stainless steel, brass, and more
Non-contact, no tool wear – perfect for delicate and high-value items
High-speed operation with minimal material loss
Technical Specifications
| Specification | Details |
|---|---|
| Laser Type | Pulsed Fiber Laser |
| Laser Output Power | 20W | 30W | 50W | 100W Watt (MAX LASER) |
| Wavelength | 1064 nm |
| Output Power Stability (Typical) | 5% |
| Power Adjusting Range | 1 - 100 % |
| Resolution Frequency | 20 - 80 KHz |
| Beam Quality (M²) | < 1.8 |
| Max. Linear Speed | 8000 mm/sec |
| Marking Depth | 0.01 – 1.5 mm (Material Dependent) |
| Red Alignment Laser | Yes |
| Min. Line Width | 0.02 mm |
| Marking Area | 180*180 mm Standard (Optional: 100*100, 150*150, 200*200, 250*250, 300*300) |
| Axis Up-Down | 800 mm (Customized as per request) |
| Min. Character Height | 0.2 mm |
| Repetition Accuracy | 0.2 μm |
| Supporting Files | SVG / DXF / DWG / PLT / JPEG / BMP / PNG |
| Cooling System | Air Cooling System |
| Software | EZCAD Original Latest Industry Standard |
| Ambient Temperature Range | +15° to +25°C |
| Power Supply | 220V / 50Hz |
| Operating System | Windows 10 |
Applications

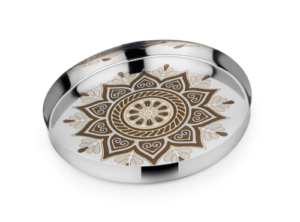

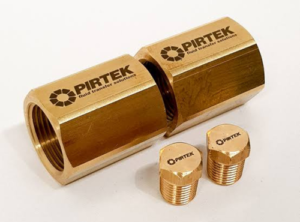

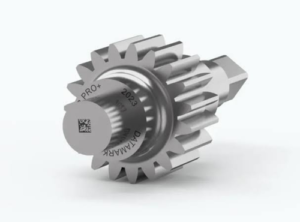

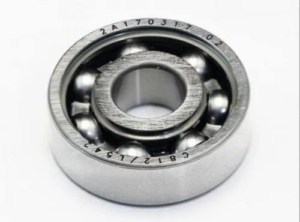

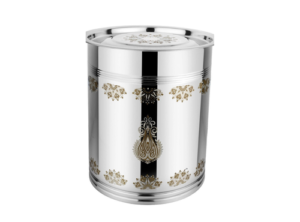

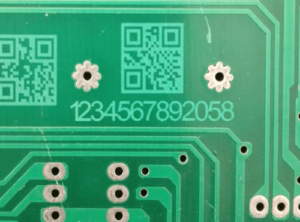

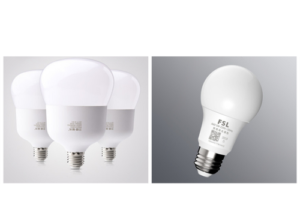

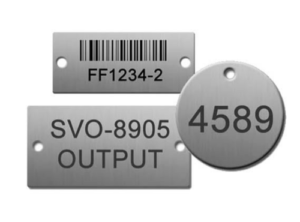

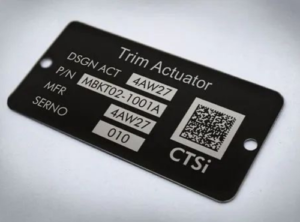

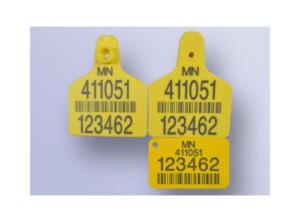

Laser Machine can be used for marking and engraving logos, brand names, texts, graphics, labels, designs, serial numbers, barcodes, QR codes, photos and more on a wide range of materials, including metals (steel, titanium, aluminum, brass, copper), plastics, ceramics, glass, wood, and more.
