FIBER LASER JEWELLERY SOLDERING

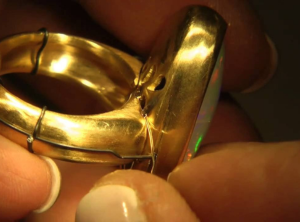

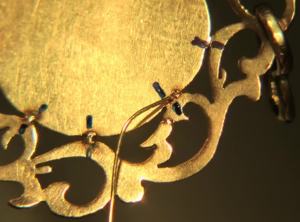

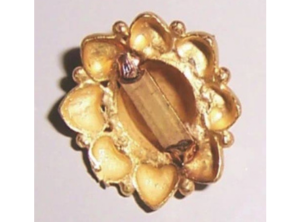

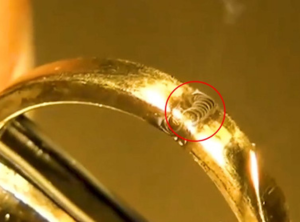

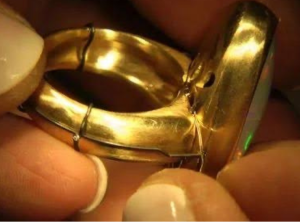

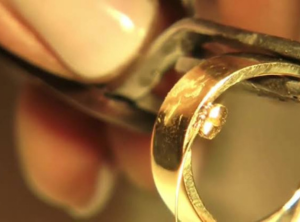

A Fiber Laser Jewellery Soldering Machine is a precision welding system designed specifically for joining and repairing fine metal components in the jewellery industry. It uses a focused fiber laser beam to deliver accurate, clean, and non-contact soldering, ideal for delicate tasks such as chain repairs, ring resizing, prong retipping, and micro-welding.
KEY FEATURES
Ultra-fine engraving – logos, patterns, text, serial numbers, photos
Precision cutting – lightweight charms, pendants, bangles, and filigree designs
Works on gold, silver, copper, platinum, stainless steel, brass, and more
Non-contact, no tool wear – perfect for delicate and high-value items
High-speed operation with minimal material loss
Technical Specifications
| Specification | Details |
|---|---|
| Device/Model | ALM (P) 200 |
| Laser Wavelength | 1064 nm |
| Reflector in Condenser Cavity | Ceramic Condenser Cavity |
| Max Laser Power | 200W |
| Rated Power | 8KW |
| Pulse Width | 0.2 – 2 mm |
| Spot Adjustment Range | 0.1 – 3 mm |
| Laser Frequency | 1 – 20 Hz |
| Cooling System | 1P |
| Observing System | CCD or Microscope |
Applications
