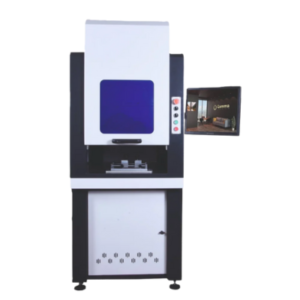

FIBER LASER JEWELLERY ENGRAVING AND CUTTING
A Fiber Laser Jewellery Engraving and Cutting Machine is a high-precision laser system tailored for engraving intricate designs and cutting fine patterns on precious metals such as gold, silver, platinum, and titanium. Known for its accuracy, speed, and durability, it’s a must-have tool in modern jewellery manufacturing and personalization.
KEY FEATURES

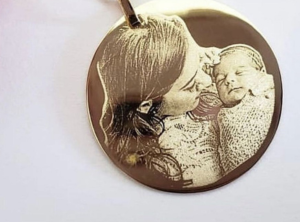

Ultra-fine engraving – logos, patterns, text, serial numbers, photos

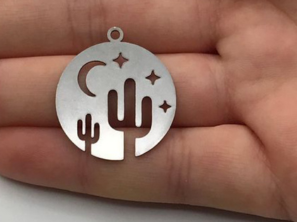

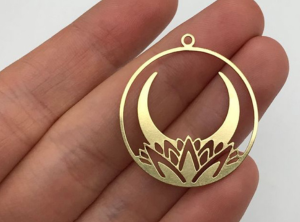

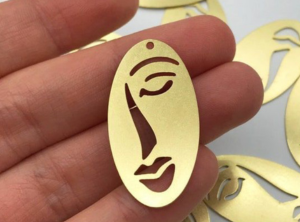

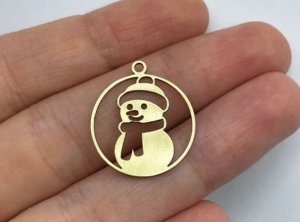

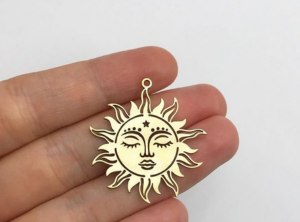

Precision cutting – lightweight charms, pendants, bangles, and filigree designs
Works on gold, silver, copper, platinum, stainless steel, brass, and more
Non-contact, no tool wear – perfect for delicate and high-value items
High-speed operation with minimal material loss
Technical Specifications
| Specification | Details |
|---|---|
| Laser Type | Fiber |
| Average Output Power | 50W / 60W / 80W / 100W / 200W |
| Wavelength | 1064 nm |
| Output Power Stability | 5% |
| Power Adjusting Range | 1~100% |
| Resolution Frequency | 50 / 200 KHz (Optional) |
| Output Beam Diameter (1/e²) | 6-9 mm |
| Max. Linear Speed | 12000 mm/s |
| Cutting Thickness | 0.01~2.0 mm (Material Dependent) |
| Work Area | 110mm x 110mm |
| Min. Character Height | 0.2 mm |
Applications
