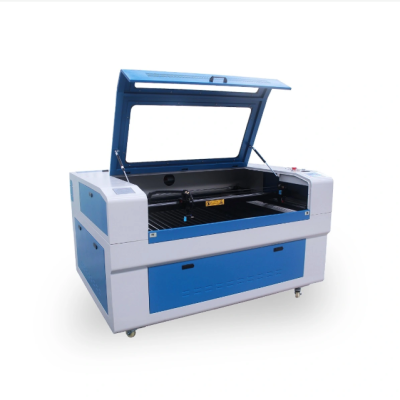

Co2 Laser Marking & Cutting Machine
CO2 LASER ENGRAVING AND CUTTING MACHINE
CO₂ laser engraving and cutting machines are highly versatile tools that use a carbon dioxide laser beam (10.6 μm wavelength) to engrave, cut, or mark non-metallic materials with precision and speed. These machines are widely used in industries where clean edges, detailed designs, and material flexibility are required.
What It Does:

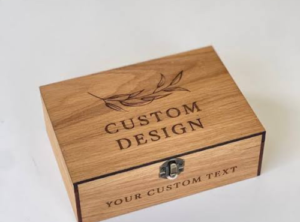

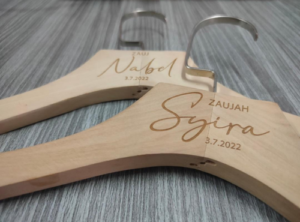

1. Engraving:
Removes surface layers to create text, patterns, or logos Ideal for materials like wood, acrylic, leather, paper, glass, and plastic Offers fine detail and high-contrast finishes

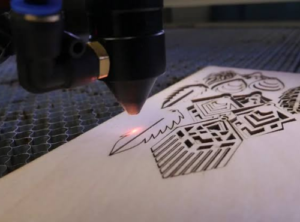

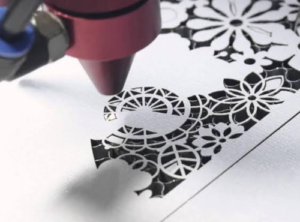

2. Cutting:
Cuts cleanly though materials such as acrylic, MDF, fabric, leather, and cardboard Produces sealed, smooth edges with minimal post-processing Can handle complex shapes and intricate designs
Cuts cleanly though materials such as acrylic, MDF, fabric, leather, and cardboard Produces sealed, smooth edges with minimal post-processing Can handle complex shapes and intricate designs
KEY FEATURES
High precision and repeatability
Non-contact processing – no mechanical pressure
Supports a wide range of file formats
(DXF, PLT, etc.)
(DXF, PLT, etc.)
Works with software like RDWorks, LaserGRBL, LightBurn
Available in multiple power options
(e.g., 60W, 100W, 150W)
(e.g., 60W, 100W, 150W)
Technical Specifications
| Specification | Details |
|---|---|
| Specs/Model | ALM Cut 6090 |
| Working Area | 600*900 mm Standard (Optional 900*1200, 1600*1000) |
| Laser Type | Sealed Glass CO₂ Laser Tube / RF Metal Laser Tube |
| Laser Power Option | Glass Tube 60 / 80 / 100 / 130 / 150 Watt |
| Wave Length | 10.6 µm |
| Supply Voltage | AC 230 V ±0.05% |
| Reposition Accuracy | 0.1 mm (Max) |
| Cutting Speed | 0 ~ 30000 mm/min |
| Engraving Speed | 0 ~ 64000 mm/min |
| X, Y Axis | LM Guide Rails |
| Cooling | AIR / Water Cooled |
| Work Environment | Temp: 0°C - 45°C, Humidity: 5% ~ 95% |
| Acceleration Speed | 1G |
| Graphic File Support | PLT, CDR, AI, DWG, DST, DXF, BMP, JPEG, TIFF, GIF, PCX |
Applications

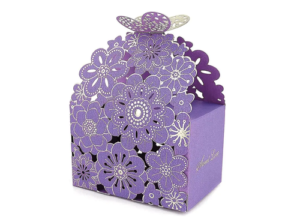

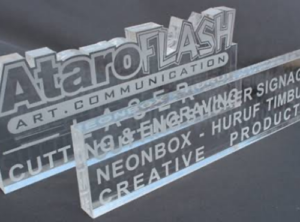

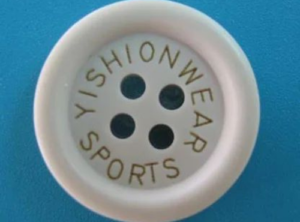

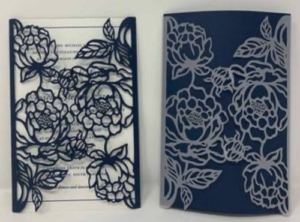

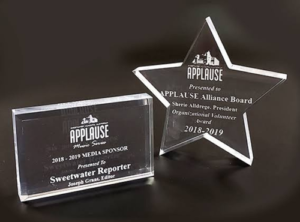

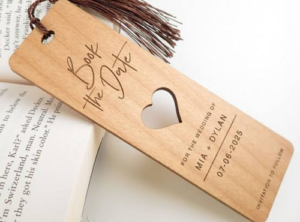

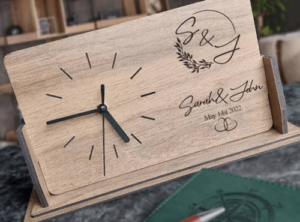

Suitable Materials: Wood (plywood, MDF, hardwood), Acrylic & Plastics, Paper & cardboard, Leather & Fabric, Glass & Ceramics, Rubber and foam.
